Shiny and fingerprint-free finish
All stainless steel surfaces are coated with a special TouchFree film that prevents fingerprint markings, leaving the surface always shiny and making cleaning much easier.
Energy class
 B
Venting tube diameter
 15 cm
Colour of housing/chimney
 stainless steel / stainless steel
Lightning efficiency class
 A
Material of housing/chimney
 stainless steel / stainless steel
Fluid dynamic efficiency class
 C
Grease filtering efficiency class
 B
Air flow by extraction version, step 1
 240 m³/h
Air flow by extraction version, step 2
 365 m³/h
Air flow by extraction version, step 3
 560 m³/h
Maximum extraction rate by extraction operation
 560 m³/h
Maximum extraction rate by recirculation operation
 420 m³/h
Lamp type
 LED

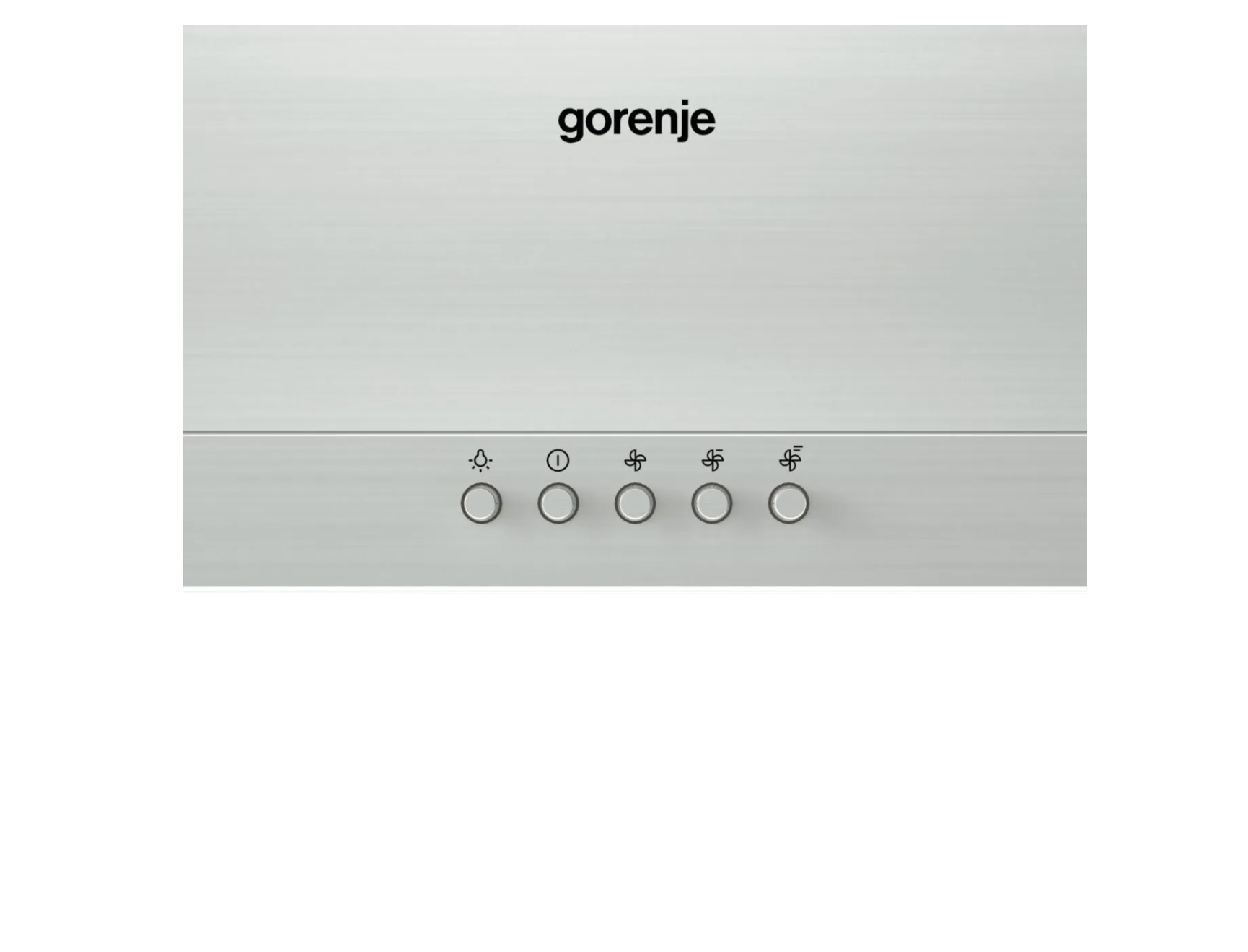

Control setting
 Button control
Power of lights
 6 W
Number of lights
 2
Number of speed positions
 3
Height
 42 mm
EAN code
 3838782074042
Net weight
 13.3 kg
Gross weight
 18.9 kg
Connected load
 206 W
Filter material
 Washable aluminium with polyurethane foam
Max. noise level
 67 dB(A)re 1 pW
Number of motors
 1
Number of filters
 3

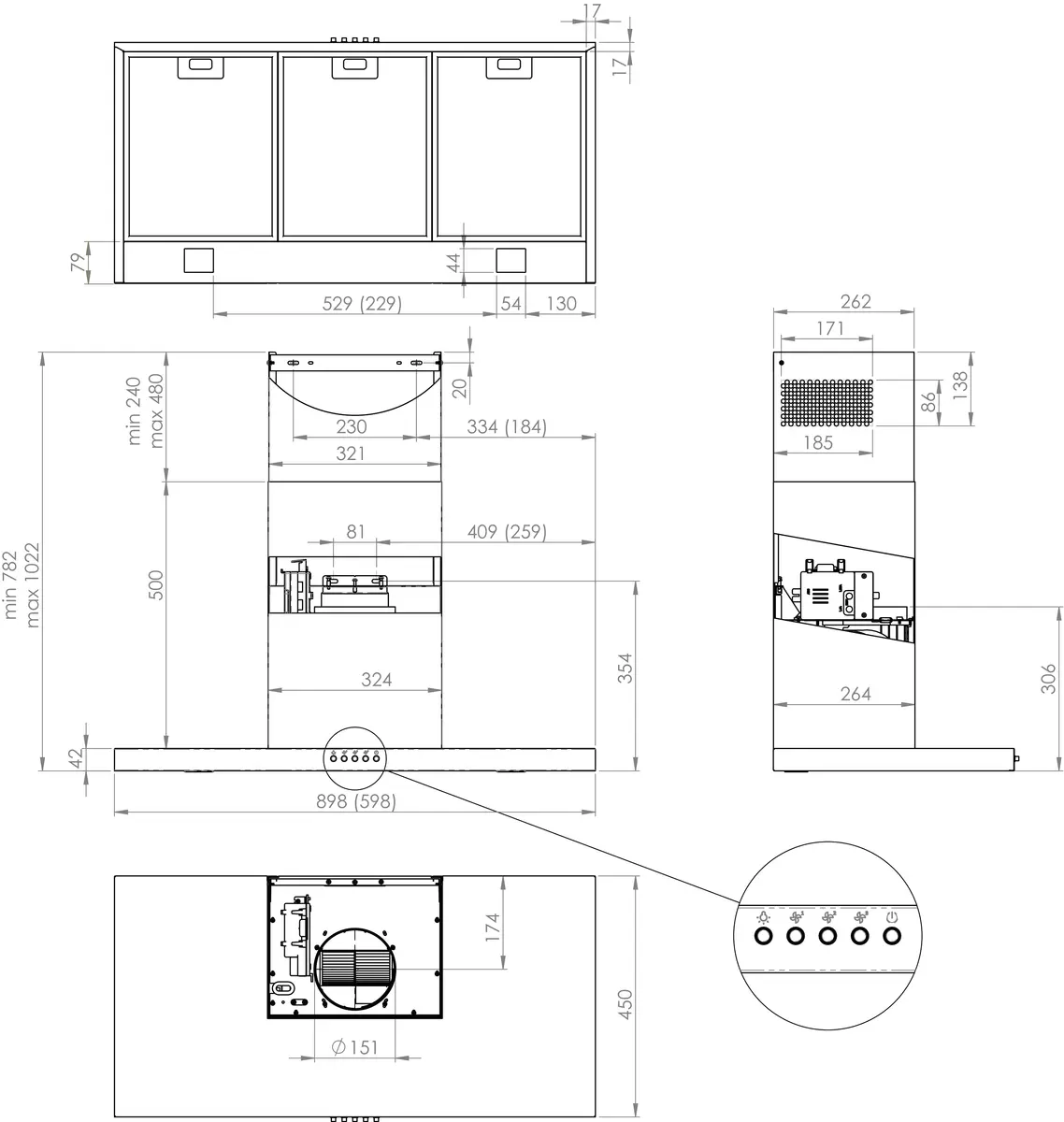

Dimensions (W×H×D)
 89.8 × 4.2 × 45 cm
No return airflow flap
 150 mm
Nominal current of fuse
 16 amp
Recirculation set number
 683038
Annual energy consumption
 68.9 kWh
Max. height of the chimney
 980 mm
Min. height of the chimney
 740 mm
Dimensions of packed product (W×H×D)
 101 × 53.8 × 52.4 cm
Coal filter code (optional as separate purchase)
 698059
